AVI-IO - The "Timer settings" dialog


This page describes the "Timer Settings" dialog of avi-io.

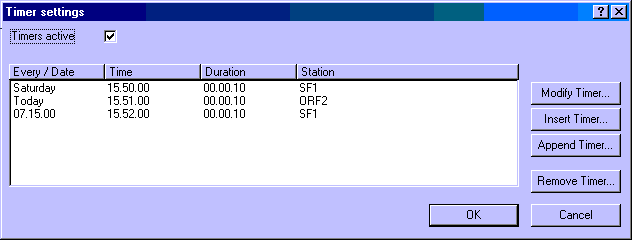

The timer setting dialog showes you the currently defined Timers. Note that they are ONLY active in case the "Timers active" checkbox is in it's checked state. This allows you to set up the timers but temporarely supress their operation. Also note that in case you are defining overlapping events, the first event in the list takes preceedence and that in case you are doing a manual operation while a timed event should be started, the timed event is not started unless you stop the manual activity.

Timers active

If the checkbox is in it's checked state, the timers are active. If not, then no timed event will be started.

Every/Date

In this collumn you see the day on which the recording should take place. This might be a weekday (which means that AVI-IO would record every say saturday and so on), a date, or the term "today" which refers to every day.

Time

In this collumn you see the time when the recording should start.

Duration

In this collumn you see for how long AVI-IO should record.

Station

In case you have defined stations, you see the station to which AVI-IO should tune before the capture should be started. Note, that in order to tune to stations you need a capture device which is supported for this funcitonality under AVI-IO. This is likeyl to be the case with all Brooktree based TV tuner boards, or in other words with all devices which support the "Intercast" (r) technology.

Modify Timer...

This button allows you to modify the highlighted timer and pop's up the "Timer Details" dialog.

Insert Timer...

This button allows you to insert a timer BEFORE the highlighted entry and pop's up the "Timer Details" dialog.

Append Timer...

This button allows you to insert a timer BELOW the highlighted entry and pop's up the "Timer Details" dialog.

Remove Timer...

This button allows you to remove the highlighted timer.
